Competition01_OTTO-Multi-Objective Recommender System
Competition01_OTTO-Multi-Objective Recommender System
竞赛地址：https://www.kaggle.com/competitions/otto-recommender-system/data?select=train.jsonl
作为第一个推荐系统方面的kaggle竞赛，这里将从零开始，详细记录每一步的进行。
竞赛介绍
OTTO是德国最大的在线商店，任务为：根据用户的一次访问(session)中行为序列(点击、加购、购买)，预测用户未来可能对哪些商品感兴趣(最多20个)。对每个session预测三类行为：
- clicks: 可能会点击的商品；
- carts: 可能会加购的商品；
- orders: 可能会下单的商品。
数据集
训练数据：
train.jsonl - 包含完整的会话数据
- session - 唯一的会话ID
- events - 会话中事件的时间顺序
- aid - 商品ID
- ts - 事件的时间戳，毫秒级
- type - 事件类型，clicks/carts/orders
1
2
3
4
5
6
7

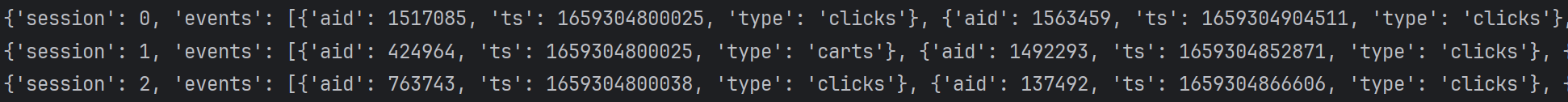

# 查看前三行数据
with open("dataSet\\train.jsonl","r",encoding="utf-8") as f:
for i, line in enumerate(f):
data = json.loads(line)
print(data)
if i >= 2:
break

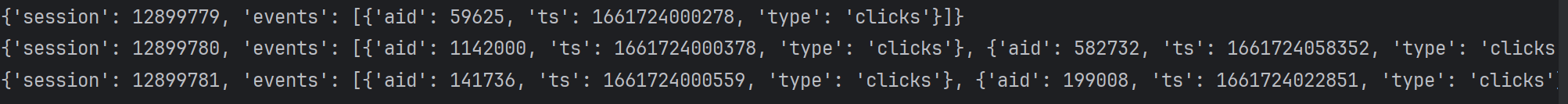

测试数据：
test.jsonl - 包含待预测的测试会话数据，不包含最终行为
需要继续预测用户买了什么，继续浏览了什么
type - 通常不包含orders, 需要预测
其余同train
得分：
根据Recall@20评估预测结果，即命中数/实际目标数
最多可以预测20个，在以召回率为评估的情况下，提交每行预测刚好20个是必要且推荐的做法。
对三个召回值进行加权平均：
score = 0.10 · Rclicks + 0.30 · Rcarts + 0.60 · Rorders
baseline
01_baseline.py
纯计数，统计出train.jsonl的event中出现次数最多的20个商品，作为预测时每个session的商品，即给每个用户不加个性化的推荐热门商品。轮流将事件置为clicks, carts, orders，构建submission.csv。
返回出现次数最多的前20个商品：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
top_clicks = Counter()
# 计算总行数
with open('dataSet\\train.jsonl', 'r', encoding='utf-8') as f:
total_lines = sum(1 for _ in f)
with open('dataSet\\train.jsonl', 'r', encoding='utf-8') as f:
for line in tqdm(f,total=total_lines,desc="统计热门商品"):
session = json.loads(line)
for event in session['events']:
top_clicks[event['aid']] += 1
# 返回出现次数最多的前20个商品,返回的是一个列表(商品ID,出现次数)
top_items = [str(aid) for aid, _ in top_clicks.most_common(20)]
轮流给商品设置事件，生成submission.csv:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
submission_rows = []
# 获取 test 文件总行数
with open('dataSet\\test.jsonl', 'r', encoding='utf-8') as f:
total_test = sum(1 for _ in f)
with open('dataSet\\test.jsonl', 'r', encoding='utf-8') as f:
for line in tqdm(f,total = total_test,desc="构建submission.csv"):
session = json.loads(line)
sid = session['session']
for t in ['clicks', 'carts', 'orders']:
submission_rows.append({
'session_type': f"{sid}_{t}",
'labels': ' '.join(top_items)
})
submission = pd.DataFrame(submission_rows)
submission.to_csv('output\\submission.csv', index=False)
得分：0.00664(private)
获得共现矩阵(仅根据click)
02_single-co-visitation.py
1. 以嵌套字典保存共现商品
1
2
3
4
5
# 嵌套字典: 字典里的值还是一个字典
# 外层字典: co_visitation[a], 商品a
# 内层字典: co_visitation[a][b], 表示商品a和商品b的共现次数
# defaultdict: 自动初始化
co_visitation = defaultdict(lambda: defaultdict(int))
2. 构建商品共现字典，为加快计算，只考虑相邻点击。
事实上，如果两个商品出现在同一个session ,但他们相隔很远，就可能关系不大；并且如果将所有商品两两共现，就会出现很多毫无关联的商品对，导致共现矩阵庞大且稀疏；限定相邻点击，大幅减少计算量。因此，相邻点击可视为一种精简而精准的共现建模方法。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
# 构建商品共现字典
with open(train_path, 'r', encoding='utf-8') as f:
for line in tqdm(f, total=total_lines, desc='构建共现矩阵'):
session = json.loads(line)
aids = [event['aid'] for event in session['events'] if event['type'] == 'clicks']
if len(aids) < 2: # 点击数太少则跳过
continue
# 只考虑相邻点击
for i in range(len(aids) - 1):
a, b = aids[i], aids[i + 1]
if a != b:
co_visitation[b][a] += 1
co_visitation[a][b] += 1
3. 每个商品只保留top 50共现商品，并将结果保留
1
2
3
4
5
6
7
8
9
# 每个商品只保留 top 50 共现商品
for a in co_visitation:
co_visitation[a] = dict(sorted(co_visitation[a].items(), key=lambda x: -x[1])[:50])
# 保存共现矩阵(以二进制写入模式打开文件,适用于pickle序列化)
with open(co_vis_pkl,'wb') as f:
pickle.dump(dict(co_visitation), f)
print(f'共现矩阵已保存到 {co_vis_pkl}')
4. 预测
针对测试session, 仅考虑最近的5个点击事件，召回相关商品作为候选：捕捉用户的最新意图，限制候选集合大小；
获得累积加分(即共现次数)最多的20个商品，作为最终预测结果。
这里暂时将三个事件的20个交互商品都预测为相同的。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
with open(test_path, 'r', encoding='utf-8') as f:
for line in tqdm(f, total=total_test, desc='为测试集生成推荐'):
session = json.loads(line)
sid = session['session']
# 获得最近的点击事件
clicked = [event['aid'] for event in session['events'] if event['type'] == 'clicks']
recent_clicks = clicked[-5:]
# 推荐商品池
candidates = defaultdict(int)
for aid in recent_clicks:
related = co_visitation.get(aid, {})
for b, score in related.items():
candidates[b] += score # 累加得分
top_items = [str(aid) for aid, _ in sorted(candidates.items(), key=lambda x: -x[1])[:20]]
for t in ['clicks', 'carts', 'orders']:
submission_rows.append({
'session_type': f"{sid}_{t}",
'labels': ' '.join(top_items)
})
submission = pd.DataFrame(submission_rows)
submission.to_csv('output\\submission.csv', index=False)
5. 得分: 0.18326
获得共现矩阵(三种事件)
03_multi-co-visitation.py
基于02进行修改
1. 建立三个嵌套字典以保存共现商品
1
2
3
co_visitation_clicks = defaultdict(lambda: defaultdict(int))
co_visitation_cart = defaultdict(lambda: defaultdict(int))
co_visitation_order = defaultdict(lambda: defaultdict(int))
2. 进行热门统计，以在候选共现商品不足时进行填充
1
2
# 热门统计
global_popular = Counter()
1
2
3
4
5
6
7
8
9
10
11
12
with open(train_path, 'r', encoding='utf-8') as f:
for line in tqdm(f, total=total_lines, desc='构建共现矩阵'):
session = json.loads(line)
events = session['events']
# 更新全局热门
for e in events:
global_popular[e['aid']] += 1
aids = [event['aid'] for event in session['events'] if event['type'] == 'clicks']
if len(aids) < 2: # 点击数太少则跳过
continue
3. 只考虑相邻事件，建立：click共现，click->cart，click->order三个共现
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
for i in range(len(aids) - 1):
a, t1 = events[i]['aid'], events[i]['type']
b, t2 = events[i + 1]['aid'], events[i + 1]['type']
if a == b:
continue
# clicks共现
if t1 == 'clicks' and t2 == 'clicks':
co_visitation_clicks[a][b] += 1
co_visitation_clicks[b][a] += 1
# click -> cart
if t1 == 'clicks' and t2 == 'carts':
co_visitation_order[a][b] += 1
# click -> order
if t1 == 'clicks' and t2 == 'orders':
co_visitation_order[a][b] += 1
4. 每个字典保留top 50，保留共现矩阵
1
2
3
4
5
6
7
8
9
# 每个商品只保留 top 50 共现商品
def trim_topk(matrix, k=50):
for a in matrix:
matrix[a] = dict(sorted(matrix[a].items(), key=lambda x: -x[1])[:k])
return matrix
co_visitation_clicks = trim_topk(co_visitation_clicks)
co_visitation_cart = trim_topk(co_visitation_cart)
co_visitation_order = trim_topk(co_visitation_order)
1
2
3
4
5
6
with open(co_vis_pkl, 'wb') as f:
pickle.dump({
"clicks": dict(co_visitation_clicks),
"cart": dict(co_visitation_cart),
"order": dict(co_visitation_order)
}, f)
5. 进行预测：将三个事件赋予不同权重，若不足20以热门top50填充
1
2
3
4
5
# 热门top50
global_popular_top = [aid for aid, _ in global_popular.most_common(50)]
# 权重
weights = {"clicks": 1.0, "cart": 1.5, "order": 2.0}
不同共现矩阵中的候选商品赋予不同得分：
1
2
3
4
5
6
7
8
candidates = defaultdict(int)
for aid in recent_clicks:
for b, score in co_visitation_clicks.get(aid,{}).items():
candidates[b] += weights["clicks"] * score
for b,score in co_visitation_cart.get(aid,{}).items():
candidates[b] += weights["cart"] * score
for b,score in co_visitation_order.get(aid,{}).items():
candidates[b] += weights["order"] * score
热门商品补位：
1
2
3
4
5
6
7
# 热门商品补位
if len(top_items) < 20:
need = 20 - len(top_items)
for aid in global_popular_top:
if str(aid) not in top_items:
top_items.append(str(aid))
if len(top
5. 得分：0.19178
6. 修改选取候选物品的得分：最近的20次点击，越近权重越高，越远越低
1
2
3
4
5
6
7
8
for idx, aid in enumerate(clicked[-20:]):
weight = (idx + 1) / 20
for b, score in co_visitation_clicks.get(aid, {}).items():
candidates[b] += weight * weights["clicks"] * score
for b, score in co_visitation_cart.get(aid, {}).items():
candidates[b] += weight * weights["cart"] * score
for b, score in co_visitation_order.get(aid, {}).items():
candidates[b] += weight * weights["order"] * score
7. 得分: 0.19413
获得共现矩阵(三种事件 + 时间戳)
03_2_multi-co-visitation-ts.py
1. 按时间戳排序，避免乱序
1
events = sorted(events, key=lambda x: x['ts'])
2. 两个事件时间间隔越大，权重越低；反之则权重越大
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
# 遍历相邻点击
for i in range(len(clicks) - 1):
a, t1, ts1 = clicks[i]['aid'], clicks[i]['type'], clicks[i]['ts']
b, t2, ts2 = clicks[i + 1]['aid'], clicks[i + 1]['type'], clicks[i + 1]['ts']
if a == b:
continue
# 时间差（秒）
dt = max(1, ts2 - ts1)
# 时间权重：越近权重越高（可以调公式）
w = 1.0 / (1 + (dt / 600)) # 600秒(10分钟)作缩放
# clicks共现
co_visitation_clicks[a][b] += w
co_visitation_clicks[b][a] += w
# 处理 click -> cart / order（保持原逻辑，但带时间权重）
for i in range(len(events) - 1):
a, t1, ts1 = events[i]['aid'], events[i]['type'], events[i]['ts']
b, t2, ts2 = events[i + 1]['aid'], events[i + 1]['type'], events[i + 1]['ts']
if a == b:
continue
dt = max(1, ts2 - ts1)
w = 1.0 / (1 + (dt / 600))
if t1 == 'clicks' and t2 == 'carts':
co_visitation_cart[a][b] += w
if t1 == 'clicks' and t2 == 'orders':
co_visitation_order[a][b] += w
生成候选商品集
04_train-candidates.py
1. 分批写入候选商品集，避免MemoryError
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
batch_size = 100000 # 每10万条写一次，可根据内存情况调节
candidate_rows = []
part_id = 0
total_batches = (total_lines // batch_size) + 1
with open(test_path, 'r', encoding='utf-8') as f, tqdm(f, total=total_test, desc='生成候选集') as session_pbar, tqdm(
total=total_batches, desc='写入批次') as batch_pbar:
for i, line in enumerate(session_pbar):
session = json.loads(line)
sid = session['session']
clicked = [event['aid'] for event in session['events'] if event['type'] == 'clicks']
candidates = defaultdict(int)
for idx, aid in enumerate(clicked[-20:]):
weight = (idx + 1) / 20
for b, score in co_visitation_clicks.get(aid, {}).items():
candidates[b] += weight * weights["clicks"] * score
for b, score in co_visitation_cart.get(aid, {}).items():
candidates[b] += weight * weights["cart"] * score
for b, score in co_visitation_order.get(aid, {}).items():
candidates[b] += weight * weights["order"] * score
# 取top50作为候选
top_items = sorted(candidates.items(), key=lambda x: -x[1])[:50]
for aid, score in top_items:
candidate_rows.append({
"session": sid,
"candidate": aid,
"score": score,
"source": "co_vis"
})
# 热门补位
for aid in global_popular_top:
if aid not in candidates:
candidate_rows.append({
"session": sid,
"candidate": aid,
"score": 0,
"source": "popular"
})
# 分批写入
if (i + 1) % batch_size == 0:
df = pd.DataFrame(candidate_rows)
df.to_parquet(f"dataset/candidates_part_{i // batch_size}.parquet", index=False)
candidate_rows = [] # 清空缓存
part_id += 1
batch_pbar.update(1)
# 最后一批写入
if candidate_rows:
df = pd.DataFrame(candidate_rows)
df.to_parquet(f"dataset/candidates_part_last.parquet", index=False)
part_id += 1
batch_pbar.update(1)
print("候选集已分批保存到 dataset/")
2. 候选文件整合
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
files = sorted(glob.glob("dataset/candidates_part_*.parquet"))
writer = None
with tqdm(total=len(files), desc="合并候选集文件") as merge_pbar:
for f in files:
df = pd.read_parquet(f)
table = pa.Table.from_pandas(df)
if writer is None:
writer = pq.ParquetWriter("dataset/candidates.parquet", table.schema)
writer.write_table(table)
merge_pbar.update(1)
if writer:
writer.close()
print("候选集已成功合并保存到 dataset/candidates.parquet")
同理，可获得test-candidates
04_2_test-candidates.py

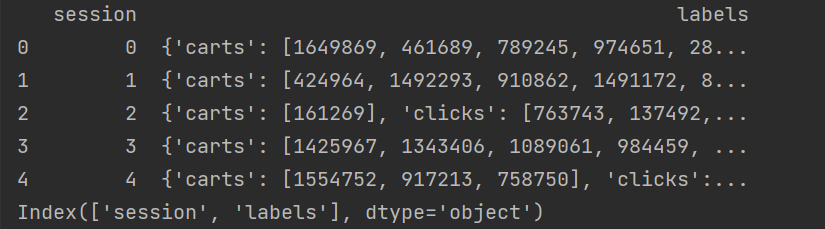

提取session标签，保存为结构化parquet文件
get_train_labels.py
获得训练特征train features
05_get-train-features.py
**各个特征计算方法: **
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
for row in tqdm(candidates_df.itertuples(), total=len(candidates_df), desc="Processing candidates"):
session = row.session
cand = row.candidate
base_score = row.score
true_items = session_dict.get(session, [])
if not true_items:
continue
# 时间加权特征
co_scores = []
co_scores_weighted = []
session_len = len(true_items)
max_ts = max([ts for _, ts in true_items]) if session_len > 0 else 0
for aid, ts in true_items:
score = co_vis.get(aid, {}).get(cand, 0)
co_scores.append(score)
# 时间衰减权重
alpha = 0.001
weight = np.exp(-alpha * (max_ts - ts))
co_scores_weighted.append(score * weight)
co_max = np.max(co_scores) if co_scores else 0
co_mean = np.mean(co_scores) if co_scores else 0
co_sum = np.sum(co_scores) if co_scores else 0
co_max_weighted = np.max(co_scores_weighted) if co_scores_weighted else 0
co_mean_weighted = np.mean(co_scores_weighted) if co_scores_weighted else 0
co_sum_weighted = np.sum(co_scores_weighted) if co_scores_weighted else 0
结构如下：
1
2
3
4
5
6
7
8
9
10
11
12
buffer_feat.append({
"session": session,
"candidate": cand, # 候选商品
"base_score": base_score,
"co_max": co_max, # 所有历史商品与候选商品最大共现分数
"co_mean": co_mean, # 平均共现分数
"co_sum": co_sum, # 总共现分数
"co_max_weighted": co_max_weighted, # 时间衰减函数，计算weight
"co_mean_weighted": co_mean_weighted,
"co_sum_weighted": co_sum_weighted,
"session_len": session_len
})
同理，可获得test features
05_2_get-test-features.py
使用LightGBM快速测试
1. 将labels逐步返回，分批次提供给训练
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
def labels_generator(labels_path):
parquet_file = pq.ParquetFile(labels_path)
for i in range(parquet_file.num_row_groups):
batch = parquet_file.read_row_group(i).to_pandas()
session_dict = {}
for _, row in batch.iterrows():
session = row['session']
session_dict[session] = {
'clicks': set(row.get('clicks', [])),
'carts': set(row.get('carts', [])),
'orders': set(row.get('orders', []))
}
yield session_dict # 逐步返回，一小批一小批的提供给训练过程
del batch
gc.collect()
features同理
2. 使用LightGBM进行训练3个二分类模型
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
def train_lgb_incremental(features_path, labels_path, target_cols):
labels_gen = labels_generator(labels_path)
models = {target: None for target in target_cols}
parquet_file = pq.ParquetFile(features_path)
total_batches = parquet_file.num_row_groups
for batch_idx, batch_df in enumerate(tqdm(feature_batch_generator(features_path, labels_gen),
total=total_batches,
desc="Processing Batches")):
feature_cols = [c for c in batch_df.columns if c not in ['session', 'candidate',
'clicks_label', 'carts_label', 'orders_label']]
for target_col in tqdm(target_cols, desc=f"Training Models on Batch {batch_idx + 1}", leave=False):
X = batch_df[feature_cols]
y = batch_df[target_col]
lgb_train = lgb.Dataset(X, label=y)
params = {
'objective': 'binary',
'metric': 'auc',
'boosting_type': 'gbdt',
'learning_rate': 0.05,
'num_leaves': 64,
'max_depth': -1,
'min_data_in_leaf': 50,
'feature_fraction': 0.8,
'bagging_fraction': 0.8,
'bagging_freq': 5,
'verbosity': -1
}
if models[target_col] is None:
models[target_col] = lgb.train(params, lgb_train, num_boost_round=100)
else:
models[target_col] = lgb.train(params, lgb_train, num_boost_round=100, init_model=models[target_col])
del X, y, lgb_train
gc.collect()
del batch_df
gc.collect()
# 保存模型
for target_col, model in models.items():
model.save_model(f"lgbm_{target_col}.txt")
return models
3. 使用3个模型进行测试
06_2_test.py
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
def predict_submission(features_path, models, topk=20):
parquet_file = pq.ParquetFile(features_path)
# print(f"[INFO] Total row groups in parquet: {parquet_file.num_row_groups}")
results = []
for rg in tqdm(range(parquet_file.num_row_groups), desc="Predicting"):
batch = parquet_file.read_row_group(rg).to_pandas()
# print(f"[DEBUG] Row group {rg}: shape = {batch.shape}")
batch_results = [] # 每个 batch 的结果先放临时列表
for target in ["clicks", "carts", "orders"]:
model = models[target]
model_feature_names = model.feature_name()
# 补齐缺失特征
for f in model_feature_names:
if f not in batch.columns:
batch[f] = 0
X = batch[model_feature_names]
batch[f"{target}_pred"] = model.predict(X)
# 分组取 TopK
preds = (
batch.groupby("session")
.apply(lambda x: x.nlargest(topk, f"{target}_pred")["candidate"].astype(str).tolist())
)
preds = preds.reset_index().rename(columns={0: "labels"})
preds["labels"] = preds["labels"].apply(lambda x: " ".join(x))
preds["session_type"] = preds["session"].astype(str) + f"_{target}"
batch_results.append(preds[["session_type", "labels"]])
# 合并并去重，避免 batch 内部重复
batch_results = pd.concat(batch_results, ignore_index=True)
batch_results = batch_results.drop_duplicates(subset=["session_type"], keep="first")
results.append(batch_results)
# 拼接所有 batch
submission = pd.concat(results, ignore_index=True)
# 再次全局去重，保证唯一
submission = submission.drop_duplicates(subset=["session_type"], keep="first")
return submission
4. 得分：0.21721
This post is licensed under CC BY 4.0 by the author.
